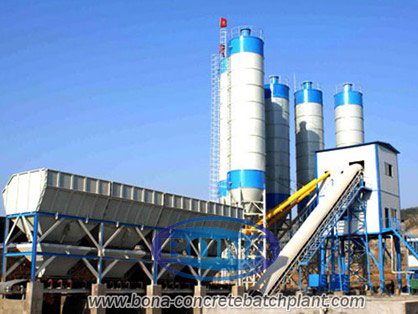

HZS120 Concrete Mixing Plant,concrete mixing plant,stationary concrete plant

  • Capacity: 120m3/h
  • Max Aggregate Size: 60/80 mm
  • Discharging Height: 3800 mm
  • Total Power: 120KW
  • Total Weight: 80Ton
  • Total Dimensions: 41600×12700×19400 mm

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Follow Us :
  • concrete batch  plant
  • concrete batching mixing plant
  • portable concrete batch plants for sale
  • portable concrete batch plants for sale
  • portable concrete batch plants for sale
■ Specifications

■ Description of HZS120 Concrete Batching Plant:
HZS series of Concrete Batching Plants is developed by our company on the basis of adopting the world's sophisticated technologies, this concrete mixing plant have been widely used in the domestic and overboard, as well as earned a perfect reputations in the construction field, we have dedicated in manufacturing concrete mixing plant for many years.
■ Features of Concrete batching mixing plant:
1. Driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed
2. With its modularization structure, it is easy to transport, install and debug more quickly.
3. Mixing system choose the spiral mixing system , which has high efficiency , scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.
4. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
5. Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with overvoltage warning and low oil level warning, safe and reliable
6. PC+PLC control system ensures the high reliability.
7. With its virtue of precise computation, it can meet the requirement of every high performance concrete.
8. Human-based intelligent control facilitates the operation greatly.
9. Structural members are durable, and most electric elements adopt world famous brands.
■ Application of Concrete Batching Plant:
Available for many applications, this stationary concrete batching plant is widely used for water conservancy ,electric power, railroad, road, tunnel , the arch of bridge, harbor-wharf and the national defense-project etc..

■ Technical Data
Model HZS120(Belt type concrete batching plant)
Capacity 120m3/h
Mixing system Twin-shaft concrete mixer
Aggregate feeder Belt conveyor
Discharging height 3900mm
After-sale service Erection & commissioning, operator training
Warranty 12 months after erection

Concrete mixer Model & Quantity YJS2000 Concrete Mixer, 1 unit
Discharging volume 2000L
Charging volume 3200L
Mixing cycle 60s
Max. mixing size 100/80mm

Aggregate batching machine Model & Quantity PLD3200, 1 unit
Storage bins quantity 4 sorts
Aggregate scale hopper 3200L
Aggregate feeding to mixer by Belt conveyor
Measurement precision ±2%

Weighing system Principle & Quantity Force sensor, 1 set
Water weighing precision ±1%
Cement weighing precision ±1%
Additive weighing precision ±1%
Fly ash weighing precision ±1%, Optional parts

Control system Type & Quantity Computer auto-control, 1 set
Control panel board Buttons, lights, meters, etc
PLC brand SIEMENS/SCHNEIDER
Control panel board Buttons, lights, meters, etc
Electric components Relays, contactors, etc
Control cabin Size & Quantity ≈10m2, 1 unit
Air conditioner 1 unit
Printer brand OKI/PANASONIC/EPSON
Computer with control software 1 unit
Industrial monitor system 1 set
Uninterrupted Power Supply (U.P.S) 1 set

High-pressure air system Quantity 1 set
Air compressor 1.0MPa
Oil-water separator 2 units
Solenoid valve 2 sets
Air tank 1 unit

Documentation 1 set
Spare Parts 1 set
Concrete Foundation Projects / Design 1 unit
Operation Guide 1 unit
Maintenance Guide 1 unit
Electrical Diagram 1 unit

Cement storage and feeding system Optional parts
Screw conveyor diameter 273/325mm
Cement silo capacity 80t/100t

Outer plant pack except belt aggregate bins Optional parts
Material & Description Laminboard, thickness: 50-75mm
Dust collector 1 unit
External color painted WHITE (or others)
Axial flow fan 2 units
Doors Windows 1 set
